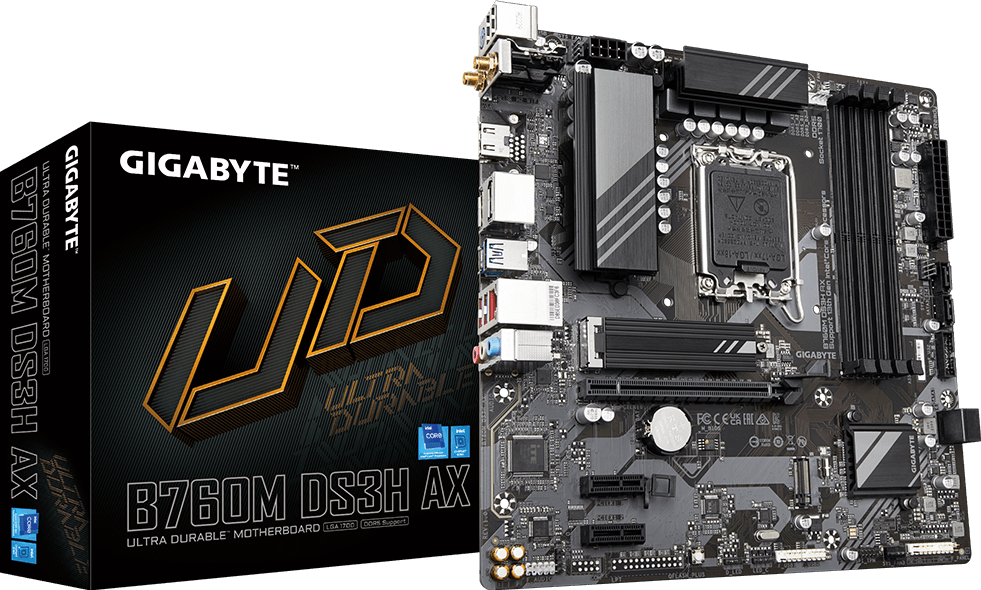

Gigabyte B760M DS3H DDR5 Wifi6

Model:
GIGABYTE B760 Model

CPU:
LGA1700 Socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Chipset:
Intel® B760 Express Chipset

Memory:
4 x DDR5 DIMM sockets, max. 256GB
Supports up to 7600+(OC) MT/s
Non-ECC Un-buffered DIMM (ECC modules operate in non-ECC mode)
Dual channel memory architecture, Supports XMP

Graphics:
1 x HDMI port (Supports max. 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3)
2 x DisplayPort (Supports max. 4096x2304@60 Hz, DP 1.2)
Supports up to triple-display simultaneously

Expansion Slots:
CPU: 1 x PCIe 4.0 x16 slot (x16 mode)
Chipset: 2 x PCIe 3.0 x1 slots

Storage:
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
M.2_1 (CPU): Type 2280 (Supports PCIe 4.0 x4/x2)
M.2_2 (Chipset): Type 2280 (Supports PCIe 4.0 x4/x2)
RAID Support: RAID 0/1/5/10 for SATA storage devices

Ethernet:
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless & Bluetooth:
Wi-Fi 6E (802.11ax), Supports 2.4/5/6GHz bands (MT7921K, AX210, AX211 və ya RTL8852CE - reviziyaya görə)
Bluetooth® v5.3 / v5.2

USB:
Rear USB (Total 6 ports): 1 x USB Type-C® (3.2 Gen 2), 3 x USB 3.2 Gen 1, 2 x USB 2.0/1.1
Front USB (Total 6 ports): 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0/1.1 headers (4 ports)

Audio:
Realtek® Audio CODEC, High Definition Audio
Supports 2/4/5.1/7.1-channel playback, S/PDIF Out

Back Panel I/O Ports:
1 x PS/2 keyboard/mouse port
1 x USB Type-C® (3.2 Gen 2)
3 x USB 3.2 Gen 1
2 x USB 2.0/1.1
1 x HDMI
2 x DisplayPort
2 x SMA antenna connectors
1 x RJ-45 LAN port
3 x Audio jacks

Internal I/O Connectors:
Fan/Cooling: 1x CPU Fan, 3x System Fan
Power: 1x 24-pin Main, 1x 8-pin ATX 12V
Storage: 2x M.2 slots, 4x SATA 6Gb/s
USB: 1x USB 3.2 Gen 1 header, 2x USB 2.0/1.1 headers
Misc: 1x Addressable LED, 1x RGB LED, 1x Front Panel, 1x Front Audio, 1x TPM header, 1x S/PDIF Out header, 1x Q-Flash Plus button, 1x Reset jumper, 1x Clear CMOS jumper

Special Features / H/W:
iTE® I/O Controller, H/W Monitoring (Voltage, Temperature, Fan, Water cooling flow), GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus

Software & BIOS:
1 x 128 Mbit flash, AMI UEFI BIOS, Norton® Internet Security (OEM)

Operating System:
Windows® 11 64-bit, Windows® 10 64-bit

Form Factor:
Micro ATX Form Factor
24.4 cm x 24.4 cm
